Kapasitor DC-Link seri WDC untuk PCB

Fitur:

Film polipropilen metalisasi

Properti listrik yang baik dan keandalan yang tinggi

Kotak plastik tahan api dan penyegelan resin epoksi (UL94 V-0, Non-PCB), terminal tembaga kaleng mengarah keluar

E.S.R. rendah, kemampuan menahan arus tinggi, masa pakai lama, dan tingkat kegagalan rendah

Spesifikasi

STandar Referensi	GB/T 17702 (IEC 61071)
Suhu pengoperasian	-40~105℃ ( 85℃hingga 105℃: faktor penurunan 1,35% per ℃ untuk U _N , 85℃)
Nilai Tegangan	500~2000 V.dc
Toleransi Kapasitansi	J（±5%）, K（±10%）
Bukti Tegangan	1,5U _N (10 detik)
Induktansi Diri	<1 nH per mm pitch timbal
R _masuk Resistensi Isolasi	≥10.000 detik (20℃, 100V, 1 menit)
t _EL Seumur Hidup yang Diharapkan	100.000 jam @ U _N , Θ _hs =70℃
Retardasi Api	UL 94V-0

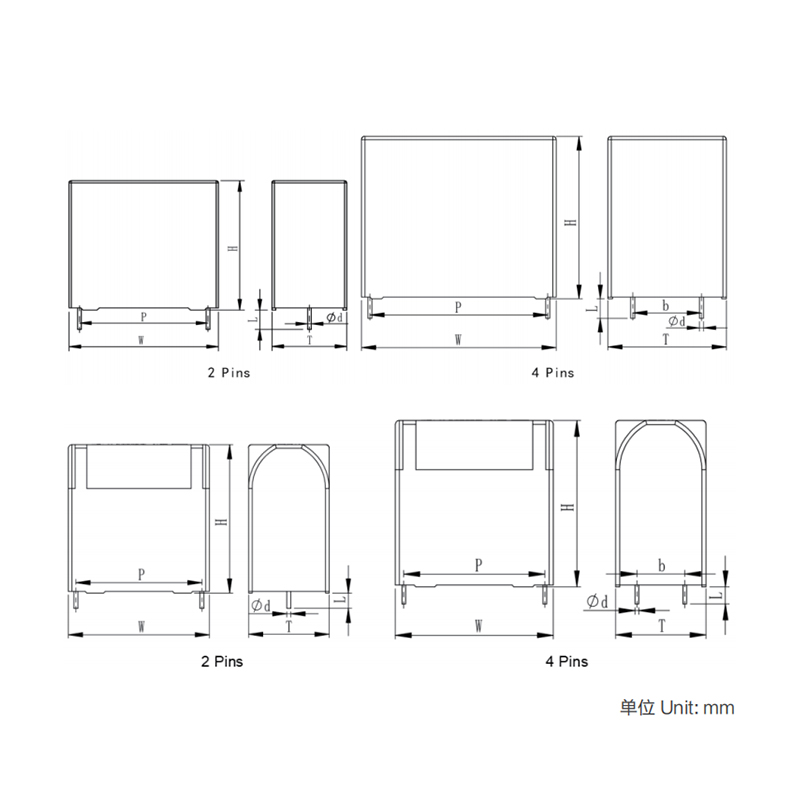

Dimensi (mm)

	C _N (μF)	W±1,0 (mm)	H±1,0 (mm)	T±1,0 (mm)	P±0,5 (mm)	P ₂ (b)±0,5 (mm)	D (mm)	dV/dt (V/μs)	tan δ(10 ^-4 )		R _ESR @10kHz (mΩ)	maksimal (A)
									tan δ(10 ^-4 )
									1KH2	10KHz
kamu _N85°C =500Vdc	5	32	20	11	27.5		0.8	65	10	100	8.5	5
	10	32	28	14	27.5		0.8	65	10	100	7.5	6.5
	22	32	37	22	27.5		0.8	65	10	100	5	10
	30	42	40	20	37.5	10.2	1	30	15	150	8	12.5
	35	42	37	22	37.5	10.2	1	30	15	150	8	13.5
	40	42	44	24	37.5	10.2	1	30	15	150	5	14.5
	50	42	45	30	37.5	20.3	1.2	30	15	150	4	16
	60	42	45	30	37.5	20.3	1.2	30	15	150	3	16.5
	75	57.5	45	30	52.5	20.3	1.2	15	35	350	5.5	16
	80	57.5	45	30	52.5	20.3	1.2	15	35	350	5	16.5
	100	57.5	50	35	52.5	20.3	1.2	15	35	350	4	18
	110	57.5	50	35	52.5	20.3	1.2	15	35	350	4	19
kamu _{N85° C} =600Vdc	2	32	18	9	27.5		0.8	65	11	100	47.8	2.8
	3	32	20	11	27.5		0.8	65	11	100	31.8	4.1
	4	32	20	11	27.5		0.8	65	11	100	23.9	5.5
	5	32	22	13	27.5		0.8	65	11	100	19.1	6.9
	6	32	25	14	27.5		0.8	65	11	100	18.6	7.1
	7	32	28	14	27.5		0.8	65	11	100	15.9	8.3
	8	32	28	14	27.5		0.8	65	11	100	139	9.5
	9	32	28	18	27.5		0.8	65	11	100	12.4	10.7
	10	32	30	16	27.5		0.8	65	11	100	11.1	11
	10	32	30	18	27.5		0.8	65	11	100	11.1	11
	12	32	33	18	27.5		0.8	65	11	100	10.8	12
	15	32	37	22	27.5		0.8	65	11	100	9	12
	15	32	37	22	27.5	10.2	0.8	65	11	100	7.4	16.5
	18	32	37	22	27.5		0.8	65	11	100	8	12
	18	32	37	22	27.5	10.2	0.8	65	11	100	6.2	17
	10	41.5	30	16	37.5		1	30	20	175	19.5	6.2
	12	41.5	30	16	37.5		1	30	20	175	16.3	7.4
	15	41.5	34	19	37.5		1	30	20	175	13	9.2
	20	42	40	20	37.5	10.2	1	30	20	175	9.8	12.3
	22	42	40	20	37.5	10.2	1	30	20	175	8.9	13.5
	25	42	40	20	37.5	10.2	1	30	20	175	7.8	15.4
	30	42	44	24	37.5	10.2	1	30	20	175	6.8	17.5
	35	42	45	30	37.5	20.3	1.2	30	20	175	6	20.1
	40	42	45	30	37.5	20.3	1.2	30	20	175	5.2	23
	45	42	50	35	37.5	20.3	1.2	30	20	175	4.6	25.8
	50	42	50	35	37.5	20.3	1.2	30	20	175	4.2	28.7
	55	42	50	35	37.5	20.3	1.2	30	20	175	3.8	31.6
	60	42	55	40	37.5	20.3	1.2	30	20	175	3.5	34.5
	65	42	55	40	37.5	20.3	1.2	30	20	175	3.2	35
	70	42	55	40	37.5	20.3	1.2	30	20	175	3	35
	75	42	60	45	37.5	20.3	1.2	30	20	175	2.8	35
	80	42	60	45	37.5	20.3	1.2	30	20	175	2.6	35
	85	42	60	45	37.5	20.3	1.2	30	20	175	2.5	35
	55	57.5	45	30	52.5	20.3	1.2	15	36	350	7.1	16.9
	60	57.5	45	30	52.5	20.3	1.2	15	36	350	6.5	18.5
	65	57.5	50	35	52.5	20.3	1.2	15	36	350	6	20
	70	57.5	50	35	52.5	20.3	1.2	15	36	350	5.6	21.5
	75	57.5	50	35	52.5	20.3	1.2	15	36	350	5.2	23.1
	80	57.5	50	35	52.5	20.3	1.2	15	36	350	4.9	24.6
	85	57.5	55	45	52.5	20.3	1.2	15	36	350	4.8	25.1
	90	57.5	55	45	52.5	20.3	1.2	15	36	350	4.6	25.8
	95	57.5	55	45	52.5	20.3	1.2	15	36	350	4.4	27.3
	100	57.5	55	45	52.5	20.3	1.2	15	36	350	4.2	28.7
	110	57.5	55	45	52.5	20.3	1.2	15	36	350	3.8	31.6
	110	57.5	55	45	52.5	20.3	1.2	15	36	350	3.8	31.6
	120	57.5	65	45	52.5	20.3	1.2	15	36	350	3.5	34.5
	130	57.5	65	45	52.5	20.3	1.2	15	36	350	3.2	35
	140	57.5	65	45	52.5	20.3	1.2	15	36	350	3	35
kamu _{N85° C} =800Vdc	2	32	18	9	27.5		0.8	65	10	95	45.4	2.9
	3	32	20	11	27.5		0.8	65	10	95	30.3	4.4
	3.3	32	22	13	27.5		0.8	65	10	95	18.8	7
	4	32	28	14	27.5		0.8	65	10	95	22.7	5.8
	5	32	28	14	27.5		0.8	65	10	95	18.2	7.3
	6	32	30	18	27.5		0.8	65	10	95	15.1	8.7
	7	32	30	18	27.5		0.8	65	10	95	13	10.2
	8	32	33	18	27.5		0.8	65	10	95	12.5	10.5
	9	32	33	18	27.5		0.8	65	10	95	11.1	11.8
	10	32	37	22	27.5		0.8	65	10	95	11	12
	10	32	37	22	27.5	10.2	0.8	65	10	95	9.1	14.5
	11	32	37	22	27.5		0.8	65	10	95	10	12
	11	32	37	22	27.5	10.2	0.8	65	10	95	8.3	16
	12	32	37	22	27.5		0.8	65	10	95	9.3	12
	12	32	37	22	27.5	10.2	0.8	65	10	95	7.6	16
	13	32	37	22	27.5		0.8	30	10	95	8.8	12
	13	32	37	22	27.5	10.2	0.8	30	10	95	8.1	16.2
	14	32	37	22	27.5		0.8	30	10	95	8.2	12
	14	32	37	22	27.5	10.2	0.8	30	10	95	7.6	16.5
	8	41.5	30	16	37.5		1	30	18	160	22.3	5.4
	9	41.5	30	16	37.5		1	30	18	160	19.8	6.1
	10	41.5	34	19	37.5		1	30	18	160	17.8	6.7
	12	41.5	34	19	37.5		1	30	18	160	14.9	8.1
	15	42	40	20	37.5	10.2	1	30	18	160	11.9	10.1
	20	42	44	24	37.5	10.2	1	30	18	160	8.9	13.5
	25	42	44	24	37.5	10.2	1	30	18	160	7.1	16.8
	30	42	45	30	37.5	20.3	1.2	30	18	160	5.9	20.2
	35	42	50	35	37.5	20.3	1.2	30	18	160	5.5	22
	40	42	50	35	37.5	20.3	1.2	30	18	160	4.8	25.1
	45	42	55	40	37.5	20.3	1.2	30	18	160	4.2	28.3
	50	42	55	40	37.5	20.3	1.2	30	18	160	3.8	31.4
	55	42	60	45	37.5	20.3	1.2	15	18	160	3.5	34.5
	60	42	60	45	37.5	20.3	1.2	15	18	160	3.2	35
	65	42	60	45	37.5	20.3	1.2	15	18	160	2.9	35
	40	57.5	45	30	52.5	20.3	1.2	15	33	320	8.9	13.5
	45	57.5	45	30	52.5	20.3	1.2	15	33	320	7.9	15.1
	50	57.5	50	35	52.5	20.3	1.2	15	33	320	7.1	16.8
	55	57.5	50	35	52.5	20.3	1.2	15	33	320	6.5	18.5
	60	57.5	50	35	52.5	20.3	1.2	15	33	320	5.9	20.2
	65	57.5	55	45	52.5	20.3	1.2	15	33	320	5.5	21.9
	70	57.5	55	45	52.5	20.3	1.2	15	33	320	5.1	23.6
	75	57.5	55	45	52.5	20.3	1.2	15	33	320	4.8	25.2
	80	57.5	55	45	52.5	20.3	1.2	15	33	320	4.6	25.9
	85	57.5	55	45	52.5	20.3	1.2	15	33	320	4.5	26.7
	90	57.5	55	45	52.5	20.3	1.2	15	33	320	4.2	28.3
	95	57.5	65	45	52.5	20.3	1.2	15	33	320	4	29.8
	100	57.5	65	45	52.5	20.3	1.2	15	33	320	3.8	31.4
	110	57.5	65	45	52.5	20.3	1.2	15	33	320	3.5	34.5
kamu _{N85° C} =900Vdc	1	32	18	9	27.5		0.8	70	9	90	45.4	2.9
	2	32	20	11	27.5		0.8	70	9	90	30.3	4.4
	3	32	22	13	27.5		0.8	70	9	90	18.8	7
	4	32	28	14	27.5		0.8	70	9	90	22.7	5.8
	5	32	28	18	27.5		0.8	70	9	90	18.2	7.3
	6	32	33	18	27.5		0.8	70	9	90	15.1	8.7
	7	32	33	18	27.5		0.8	70	9	90	13	10.2
	8	32	37	22	27.5		0.8	70	9	90	12.5	10.5
	8	32	37	22	27.5	10.2	0.8	70	9	90	11.1	11.8
	9	32	37	22	27.5		0.8	70	9	90	11	12
	9	32	37	22	27.5	10.2	0.8	70	9	90	9.1	14.5
	10	32	37	22	27.5		0.8	70	9	90	10	12
	10	32	37	22	27.5	10.2	0.8	70	9	90	8.3	16
	4.7	41.5	30	16	27.5		1	70	17	150	9.3	12
	5	41.5	30	16	27.5	10.2	1	70	17	150	7.6	16
	6	41.5	30	16	27.5		1	70	17	150	8.8	12
	7	41.5	30	16	27.5	10.2	1	70	17	150	8.1	16.2
	8	41	34	19	27.5		1	70	17	150	8.2	12
	10	42	40	20	27.5	10.2	1	70	17	150	7.6	16.5
	12	42	37	22	37.5	10.2	1	35	17	150	22.3	5.4
	15	42	44	24	37.5	10.2	1	35	17	150	19.8	6.1
	18	42	44	24	37.5	10.2	1	35	17	150	17.8	6.7
	20	42	44	24	37.5	10.2	1	35	17	150	14.9	8.1
	25	42	45	30	37.5	20.3	1.2	35	17	150	8.9	13.5
	30	42	50	35	37.5	20.3	1.2	35	17	150	7.1	16.8
	35	42	55	40	37.5	20.3	1.2	35	17	150	5.9	20.2
	40	42	55	40	37.5	20.3	1.2	35	17	150	5.5	22
	45	42	60	45	37.5	20.3	1.2	35	17	150	4.8	25.1
	50	42	60	45	37.5	20.3	1.2	35	17	150	4.2	28.3
	30	57.5	45	30	52.5	20.3	1.2	15	31	300	8.9	13.5
	35	57.5	45	30	52.5	20.3	1.2	15	31	300	7.1	16.8
	40	57.5	50	35	52.5	20.3	1.2	15	31	300	6.5	18.5
kamu _{N85° C} =1000Vd	1	32	18	9	27.5		0.8	75	8	80	76.4	1.7
	2	32	22	13	27.5		0.8	75	8	80	38.2	3.5
	3	32	28	14	27.5		0.8	75	8	80	25.5	5.2
	4	32	30	18	27.5		0.8	75	8	80	19.1	6.9
	5	32	33	18	27.5		0.8	75	8	80	15.3	8.6
	6	32	33	18	27.5		0.8	75	8	80	14.9	8.9
	7	32	37	22	27.5		0.8	75	8	80	14.5	9.4
	7	32	37	22	27.5	10.2	0.8	75	8	80	11.4	11.6
	8	32	37	22	27.5		0.8	75	8	80	13	10.8
	8	32	37	22	27.5	10.2	0.8	75	8	80	10	13.3
	5	41.5	30	16	27.5		1	75	8	80	31.2	3.8
	6	41.5	30	16	27.5		1	75	8	80	26	4.6
	7	41.5	35	19	27.5		1	75	8	80	22.3	5.4
	8	41.5	34	19	37.5		1	37	15	140	19.5	6.2
	10	42	40	20	37.5		1	37	15	140	15.6	6.7
	10	42	40	20	37.5	10.2	1	37	15	140	15.6	7.7
	12	42	37	22	37.5		1	37	15	140	13	9.2
	12	42	37	22	37.5	10.2	1	37	15	140	15	8
	15	42	44	24	37.5	10.2	1	37	15	140	10.4	11.5
	18	42	45	30	37.5	20.3	1.2	37	15	140	8.7	13.8
	20	42	45	30	37.5	20.3	1.2	37	15	140	7.8	15.4
	25	42	50	35	37.5	20.3	1.2	37	15	140	6.2	19.2
	30	42	55	40	37.5	20.3	1.2	37	15	140	5.2	23.1
	35	42	55	40	37.5	20.3	1.2	37	15	140	4.8	25.1
	40	42	60	45	37.5	20.3	1.2	37	15	140	4.2	28.7
	25	57.5	45	30	52.5	20.3	1.2	17	28	280	12.5	9.6
	30	57.5	45	30	52.5	20.3	1.2	17	28	280	10.4	11.5
	35	57.5	50	35	52.5	20.3	1.2	17	28	280	8.9	13.5
	40	57.5	50	35	52.5	20.3	1.2	17	28	280	7.8	15.4
	45	57.5	55	45	52.5	20.3	1.2	17	28	280	6.9	17.3
	50	57.5	55	45	52.5	20.3	1.2	17	28	280	6.2	19.2
	55	57.5	55	45	52.5	20.3	1.2	17	28	280	5.7	21.1
	60	57.5	65	45	52.5	20.3	1.2	17	28	280	5.2	23.1
	65	57.5	65	45	52.5	20.3	1.2	17	28	280	4.8	25
	70	57.5	65	45	52.5	20.3	1.2	17	28	280	4.5	26.9
kamu _{N85° C} =1100Vd	0.68	32	20	11	27.5		0.8	80	8	70	80	1.7
	1	32	20	11	27.5		0.8	80	8	70	59.4	2.2
	1.5	32	22	13	27.5		0.8	80	8	70	55.7	2.4
	2	32	25	14	27.5		0.8	80	8	70	27.9	4.7
	3	32	30	18	27.5		0.8	80	8	70	20.4	6.5
	4	32	33	18	27.5		0.8	80	8	70	15.3	8.6
	5	32	37	22	27.5		0.8	80	8	70	14	9.8
	5	32	37	22	27.5	10.2	0.8	80	8	70	12.3	10.8
	6	32	37	22	27.5		0.8	80	8	70	12.3	10.8
	6	32	37	22	27.5	10.2	0.8	80	8	70	10.2	12.9
	3	41.5	30	16	37.5		1	40	15	130	48.3	2.5
	4	41.5	30	16	37.5		1	40	15	130	36.2	3.3
	4.7	41.5	34	19	37.5		1	40	15	130	30.8	3.9
	5	41.5	34	19	37.5		1	40	15	130	29	4.1
	6	41.5	34	19	37.5		1	40	15	130	24.2	5
	7	42	40	20	37.5	10.2	1	40	15	130	20.7	5.8
	8	42	37	22	37.5	10.2	1	40	15	130	18.1	6.6
	9	42	37	22	37.5	10.2	1	40	15	130	16.1	7.5
	10	42	44	24	37.5	10.2	1	40	15	130	14.5	8.3
	12	42	44	24	37.5	10.2	1	40	15	130	12.1	9.9
	15	42	45	30	37.5	20.3	1.2	40	15	130	9.7	12.4
	18	42	50	35	37.5	20.3	1.2	40	15	130	8.1	14.9
	20	42	50	35	37.5	20.3	1.2	40	15	130	7.2	16.6
	25	42	55	40	37.5	20.3	1.2	40	15	130	5.8	20.7
	30	42	60	45	37.5	20.3	1.2	40	15	130	4.8	24.8
	20	57.5	45	30	52.5	20.3	1.2	20	27	260	14.5	8.3
	25	57.5	50	35	52.5	20.3	1.2	20	27	260	11.6	10.4
	30	57.5	50	35	52.5	20.3	1.2	20	27	260	9.7	12.4
	35	57.5	55	45	52.5	20.3	1.2	20	27	260	8.4	14.3
	40	57.5	55	45	52.5	20.3	1.2	20	27	260	7.8	15.5
	45	57.5	55	45	52.5	20.3	1.2	20	27	260	6.9	17.4
	50	57.5	65	45	52.5	20.3	1.2	20	27	260	6.2	19.3
	55	57.5	65	45	52.5	20.3	1.2	20	27	260	5.6	21.3
kamu _{N85° C} =1200Vd	1	32	20	11	27.5		0.8	90	7	55	39.5	3.5
	2	32	28	14	27.5		0.8	90	7	55	26.3	5
	3	32	30	18	27.5		0.8	90	7	55	17.5	7.5
	4	32	33	18	27.5		0.8	90	7	55	13.9	9.5
	5	32	37	22	27.5		0.8	90	7	55	12.7	10.4
	5	32	37	22	27.5	10.2	0.8	90	7	55	11.1	11.8
	3	41.5	30	16	37.5		1	45	13	100	37.2	3.2
	4	41.5	30	16	37.5		1	45	13	100	27.9	4.3
	5	41.5	34	19	37.5		1	45	13	100	22.3	5.4
	6	42	40	20	37.5		1	45	13	100	18.6	6.5
	7	42	37	22	37.5	10.2	1	45	13	100	15.9	7.5
	8	42	44	24	37.5	10.2	1	45	13	100	13.9	8.6
	9	42	44	24	37.5	10.2	1	45	13	100	12.4	9.7
	10	42	44	24	37.5	10.2	1	45	13	100	11.1	10.8
	12	42	45	30	37.5	20.3	1.2	45	13	100	9.3	12.9
	15	42	50	35	37.5	20.3	1.2	45	13	100	7.4	16.1
	18	42	50	35	37.5	20.3	1.2	45	13	100	6.6	18.1
	20	42	55	40	37.5	20.3	1.2	45	13	100	6	20.1
	25	42	60	45	37.5	20.3	1.2	45	13	100	4.8	25.1
	15	57.5	45	30	52.5	20.3	1.2	23	24	200	15.9	7.5
	20	57.5	45	30	52.5	20.3	1.2	23	24	200	11.9	10
	25	57.5	55	45	52.5	20.3	1.2	23	24	200	9.6	12.6
	30	57.5	55	45	52.5	20.3	1.2	23	24	200	8	15.1
	35	57.5	55	45	52.5	20.3	1.2	23	24	200	6.8	17.6
	40	57.5	65	45	52.5	20.3	1.2	23	24	200	6	20.1
	45	57.5	65	45	52.5	20.3	1.2	23	24	200	5.3	22.6

Pertanyaan? Lihat jawaban kami.

BERAPA LAMA SAYA DAPAT MENDAPATKAN UMPAN BALIK SETELAH KAMI MENGIRIM PERTANYAAN?

Kami akan membalas Anda dalam waktu 12 jam pada hari kerja.
APAKAH ANDA PRODUSEN LANGSUNG ATAU PERUSAHAAN PERDAGANGAN?

Kami memiliki pabrik milik sendiri, kami juga memiliki departemen penjualan internasional kami sendiri. Kami memproduksi dan menjual semuanya sendiri.
PRODUK APA YANG DAPAT ANDA TAWARKAN?

Kami fokus pada kapasitor film.
APLIKASI APA YANG TERKAIT DENGAN PRODUK ANDA?

Produk kami digunakan dalam berbagai aplikasi, termasuk peralatan rumah tangga, pasokan listrik, meteran listrik, penerangan, mesin las, angkutan kereta api, kendaraan listrik, jaringan listrik, UPS/EPS, peralatan medis, inverter fotovoltaik, konverter tenaga angin, dan selengkapnya.
BISAKAH ANDA MELAKUKAN PRODUK YANG DISESUAIKAN?

Ya, kami ahli dalam membuat produk yang disesuaikan dengan gambar atau sampel pelanggan.

Berfokus pada Manufaktur Komponen Elektronik selama 20 Tahun.

Walson Elektronik didirikan pada tahun 2001, dengan pengalaman lebih dari 20 tahun di R&D, manufaktur, penjualan, dan layanan kapasitor film. Kustom Kapasitor DC-Link seri WDC untuk PCB Produsen dan Kapasitor DC-Link seri WDC untuk PCB Pabrik

Kami selalu mematuhi kerjasama otomatisasi dan industrialisasi tingkat lanjut. perusahaan terus memperkenalkan peralatan produksi dalam dan luar negeri yang luar biasa, sementara perangkat lunak manajemen produksi yang dikembangkan sendiri, manajemen kolaboratif perusahaan untuk operasi ilmiah dan efisien, telah mencapai terobosan kapasitas produksi 1 miliar/tahunan, dan mempertahankan kenaikan yang teratur.

Walson Produk elektronik telah mencakup lebih banyak industri, termasuk industri energi dan tenaga baru, inverter fotovoltaik, Pencahayaan LED, peralatan rumah tangga dan berbagai sumber daya dan industri lainnya.

Mengikuti konsep teknologi inovatif, layanan jujur dan kualitas profesional, Walson Elektronik terus mendorong produk kapasitor ke depan dan pasti akan menjadi pelopor industri dengan keunggulan inovatif.

Hubungi Kami
